Industrial 8-Port 10/100Base-TX + 1-Port 100BASE-FX Ethernet Switch

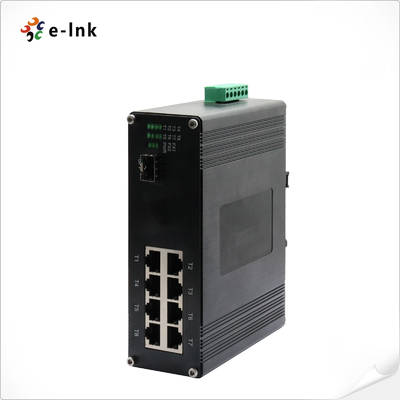

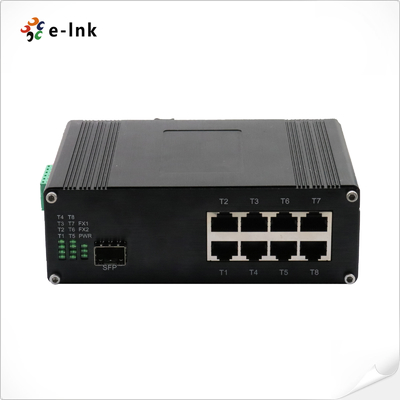

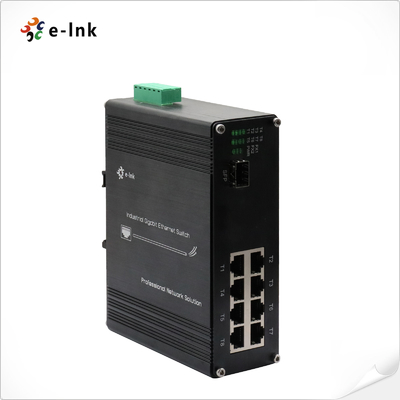

LNK-IMC108 Industrial Ethernet Switch Overview
The LNK-IMC108 is an Industrial Ethernet Switch featuring 8 10/100Base-TX RJ45 ports and
1 100Base-FX fiber port, designed to deliver reliable and stable network connectivity
in harsh industrial environments.
Each RJ45 port supports 10/100Mbps, full/half-duplex and auto MDI/MDI-X, ensuring it works
with a wide range of Ethernet devices. The fibre port works with both single-mode and multi-mode fibres,
using 1 or 2 cores, to allow for long-distance communication between remote sites.
The LNK-IMC108 is designed for industrial uses like IP surveillance, wireless AP bridging,
or machine-to-machine communication. It is made to be strong and durable,
It is also easy to mount on a DIN rail.
It is perfect for expanding networks in factory automation, intelligent transportation, and outdoor areas.
LNK-IMC108 Industrial Ethernet Switch Features
LNK-IMC008 presents the following characteristics:
►8x 10/100Base-TX ports + 1x 100Base-FX fiber port
►Supports Single-mode & Multi-mode fiber (1 or 2 core)
►Auto MDI/MDI-X & auto-negotiation for hassle-free setup
►SFP, SC, FC, ST Optional
►Industrial-strength design for harsh environments
►Ideal for IP cameras, wireless APs, and remote networks
LNK-IMC108 Industrial Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3x Flow Control
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
512K bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Address Table Size:
|
1024 MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
1 x 100Base-FX (SFP, SC, FC, ST Optional)
|
|
Ethernet Port
|
RJ45 Port 1 ~ Port 8
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~58VDC , Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
5W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
FX1
|
|
Dimensions (WxDxH):
|
150 x 115 x 50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Metal Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
LNK-IMC108 Industrial Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC108
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
|
|
LNK-IMC108-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC108S-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC108F-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC108-SFP
|
Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|

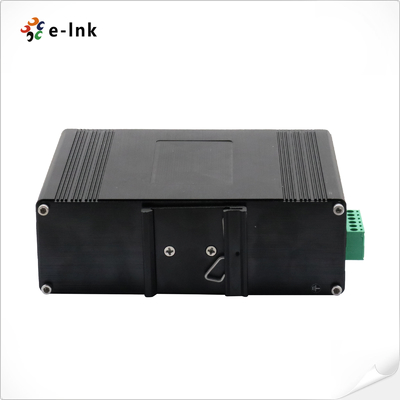

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
LNK-IMC108 Industrial Ethernet Switch Application
