Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Ethernet Media Converter
Mini Industrial Ethernet Media Converter Overview

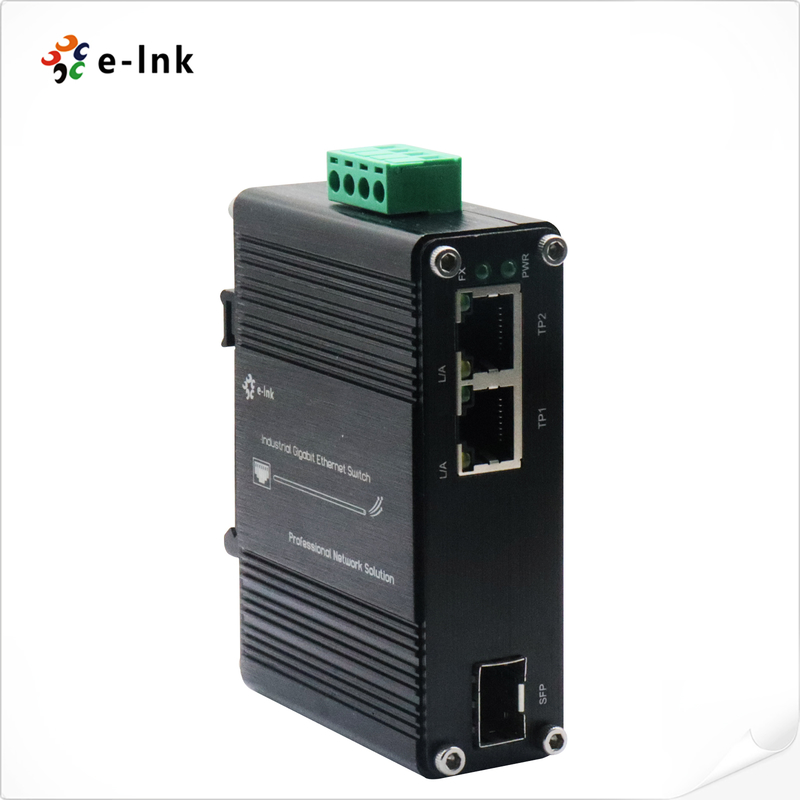

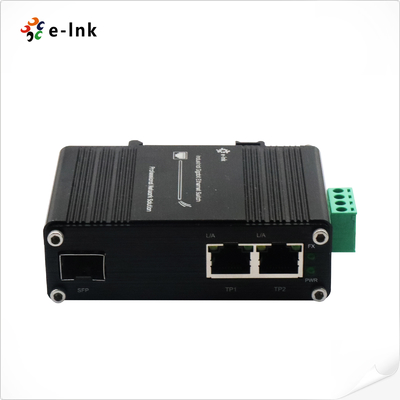

The LNK-IMC1200G-SFP Series Industrial DIN Rail Gigabit Media Converter is a reliable solution
for extending Ethernet over fiber in harsh environments. This hardened media converter has been designed
with a rugged enclosure and is compliant with EN55022 standards. It is able to operate in extreme temperatures
ranging from -40°C to +75°C, making it ideal for industrial automation, transportation and outdoor applications.
This Gigabit media converter is equipped with 10/100/1000Base-T copper ports and 100/1000Base-X SFP slots,
providing users with a range of flexible fibre options. These options include external SFP modules for single-mode
or multi-mode fibre(1 or 2-core) offering enhanced versatility. The Ethernet port supports full-duplex
and half-duplex modes for seamless connectivity and high-speed data transmission.
The LNK-IMC1200G-SFP is designed for straightforward installation and reliable performance
in critical networks, thanks to its DIN rail mounting and wide power input compatibility. This product is ideal
for extending network distances of up to 120 km when used with the appropriate SFP modules.
Mini Industrial Ethernet Media Converter Features
LNK-IMC1200G-SFP Series present the following characteristics:
- Dual Gigabit Ethernet Ports – 2× 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X for easy device connectivity.
- Flexible Fiber Connectivity – 1× SFP slot supporting 100Base-FX or 1000Base-X (auto detection) for long-distance fiber transmission.
- Advanced Network Performance – Supports Full/Half-duplex and Auto-negotiation for optimized data flow.
- Energy Efficient Design – Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE) for reduced power consumption.
- Wide Power Input – Operates on 12~48VDC via Terminal Block for flexible industrial power environments.

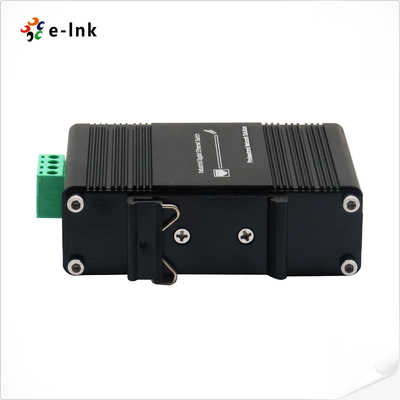

- Versatile Mounting Options – DIN-Rail and Wall-Mount installation for easy integration in control cabinets or panels.
- Industrial-Grade Reliability – Hardened design with -40°C to +75°C (-40°F to +167°F) operating temperature for harsh environments.
Mini Industrial Ethernet Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
SPD:
|
Ethernet Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Ethernet Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200G-SFP
|
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
