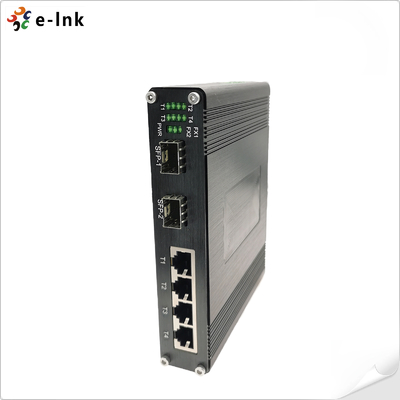

Industrial 4-Port 802.3bt PoE++ Switch with 2 SFP, 360W Power Budget
Overview
The LNK-IMC204GP100 Series is a rugged industrial-grade switch featuring 4 Gigabit
PoE++ ports (up to 100W each) and 2 flexible 100/1000Base-X uplink ports. Designed for
harsh environments, it delivers high-power PoE for IP cameras, wireless APs, and other
demanding devices while ensuring reliable fiber uplink connectivity. With a wide temperature
range (-40°C to 80°C), redundant power inputs, and robust aluminum housing, this switch is
an ideal solution for mission-critical industrial and surveillance networks.
Features
4x 10/100/1000Base-T PoE++ Ports, up to 100W per port, total 360W budget
2x 100/1000Base-X uplinks (SFP/SC/FC/ST optional) for flexible fiber expansion
Supports IEEE 802.3af/at/bt PoE standards for diverse powered devices
Wide operating temperature from -40°C to 80°C for harsh environments
Redundant 48–57VDC power input with overload and reverse polarity protection
Compact aluminum enclosure with DIN-Rail/Wall-mount installation
Energy Efficient Ethernet (EEE) reduces power consumption during low traffic
MTBF >200,000 hrs, ensuring long-term network reliability
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size:
|
2048 MAC Addresses
|
|
Interface
|
|
Connector:
|
4 x RJ45
|
|
Optical Port:
|
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57V DC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
360W Max. (PoE in use)
|
|
5W Max. (PoE not in use)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
PoE:
|
|
Port:
|
RJ45 Port 1 ~ Port 4
|
|
Max. Power per Port:
|
100W Max per port
|
|
Power Pin Assignment
|
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
PoE:
|
Per Port Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
SFP:
|
FX1, FX2
|
|

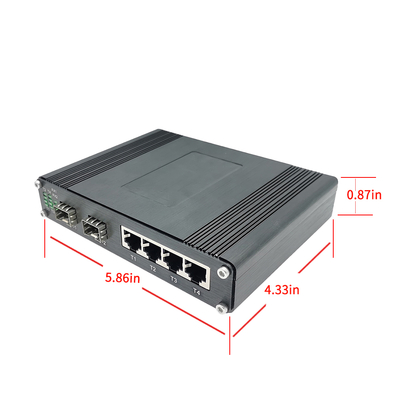

Dimensions (WxDxH):
|
150 x 115 x 30 mm
|
|
Weight:
|
0.5Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC204GP100
|
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
|
|
LNK-IMC204GP100-20
|
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC204GPS100-20
|
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC204GPF100-20
|
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC204GP100-SFP
|
Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
