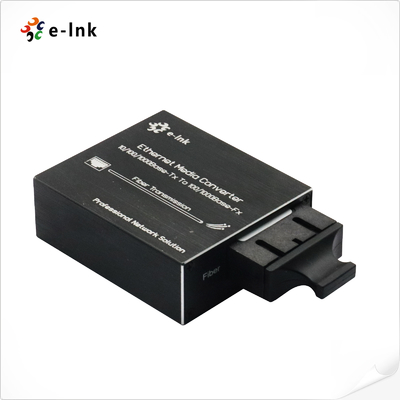

Microtype 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter
Overview
The LNK-M3011 series adaptive 10/100/1000Mbps Gigabit Ethernet media converters utilize switching
technology for seamless copper-to-fiber media conversion. Compliant with IEEE 802.3, 802.3u, 802.3z,
and 802.3ab standards, they bridge the gap between:
- Copper (RJ-45): 10Base-T, 100Base-TX, and 1000Base-T electrical signals over twisted pair.
- Fiber (SFP): 100Base-SX/LX and 1000Base-SX/LX optical signals.
This conversion significantly extends network reach, overcoming the 100-meter limitation of copper
cabling to support distances up to 20km (and up to 120km maximum, depending on fiber type and
optics). The converters are versatile, supporting operation over:
- Multi-mode dual fiber
- Single-mode dual fiber
- Single-mode single fiber
Key Features & Benefits:

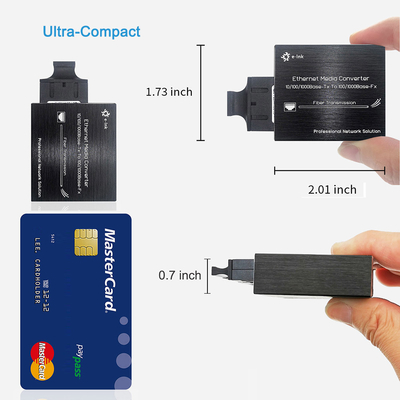

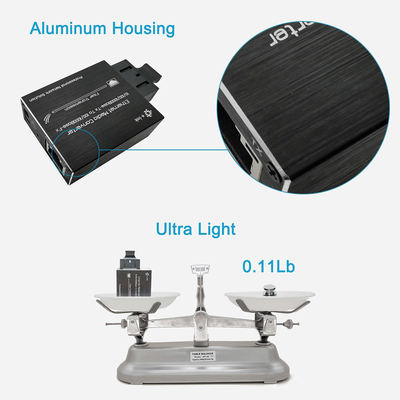

Compact & Integrated Design: The ultra-compact size facilitates easy installation and seamless
integration into other equipment or space-constrained environments.
Dual-Speed Fiber Compatibility:** Supports both 100Mbps and 1000Mbps operation on the fiber port,
ensuring broad compatibility with diverse network devices.
Extended Reach: Transforms short-range copper links (100m) into long-haul fiber connections (up
to 120km).
Features
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Microtype design
► Supporting full-duplex and half-duplex and its auto-sensed
► Support 9k jumbo frame
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port |
1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
| Wavelength |
850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
|
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs
One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm)
Single mode Dual-fiber: SC (9/125μm)
Single mode Single fiber: SC (9/125μm)
|
| Conversion means |
Media conversion |
| LFP |
Not Support |
| BER |
<10-9 |
| MTBF |
100,000 hours |
| LED indicator |
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
| Power supply |
DC 5~15V |
| Power consumption |
3W |
| Operating temperature |
0~45ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Dimensions (W x D x H) |
62 x 44 x 18 mm |
Ordering Information
| Item |
Description |
|
| |
| LNK-M3011 |
Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor |
|
| LNK-M3011-20 |
Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
| LNK-M3011S-20 |
Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
|

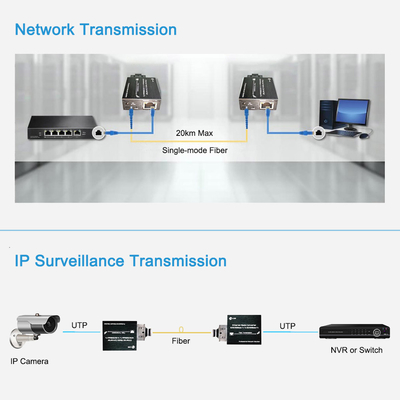

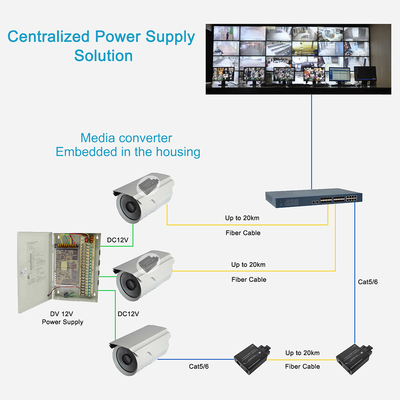

Typical Application
